Benefits

Benefits of this high-performance polymer

VICTREX PEEK polymers have prompted advances across industries. They remain a source of active innovation. As a metal replacement solution, these high-performance polymers help meet key engineering requirements in critical components.
Victrex 450G
Landing page
A popular choice
All round excellent mechanical, chemical, high temperature and electrical performance.
Find out more
landing page
Looking for a PFAS replacement?
In the face of PFAS concerns we offer a range of proven high-performance PEEK polymers as potential safer and more sustainable alternatives.
Find out more
VICTREX PEEK Gears
VIDEO
Efficient metal replacement solution
Supporting lighter components, longer lifetime, design freedom and reduced cost.
Watch to learn more
40+
fast fact

#1 PEEK expert

40+ years unmatched knowledge and experience spanning polymers, forms and parts.

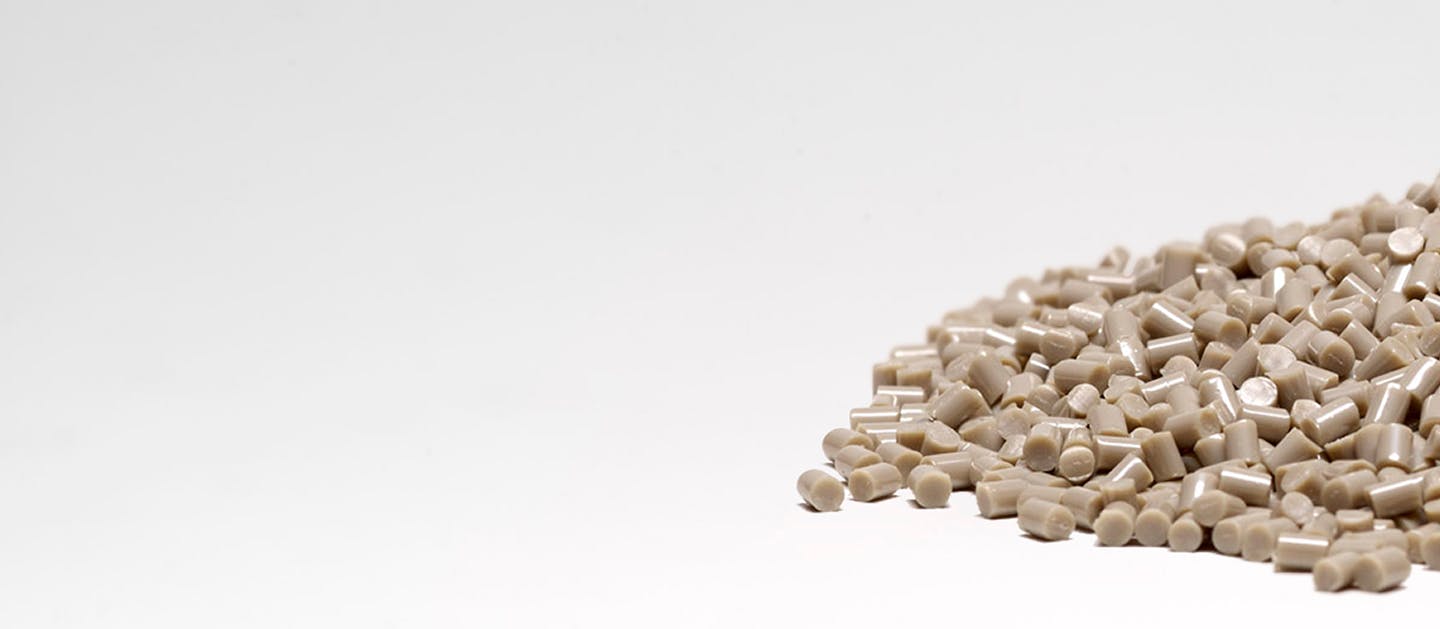

Victrex PEEK Polymer Granules
faq

PEEK Compounds

Carbon and glass-filled PEEK grades can enhance certain properties to deliver longer lifetime compared to metals.

Additive Manufacturing of VICTREX™ PAEK
fast fact

Additive Manufacturing of VICTREX™ PAEK

Improved technologies for 3D printing (3DP), can open up a range of possibilities for design engineers.
Learn more
How can we help?

Ask us anything about

PEEK properties

PEEK material properties overview

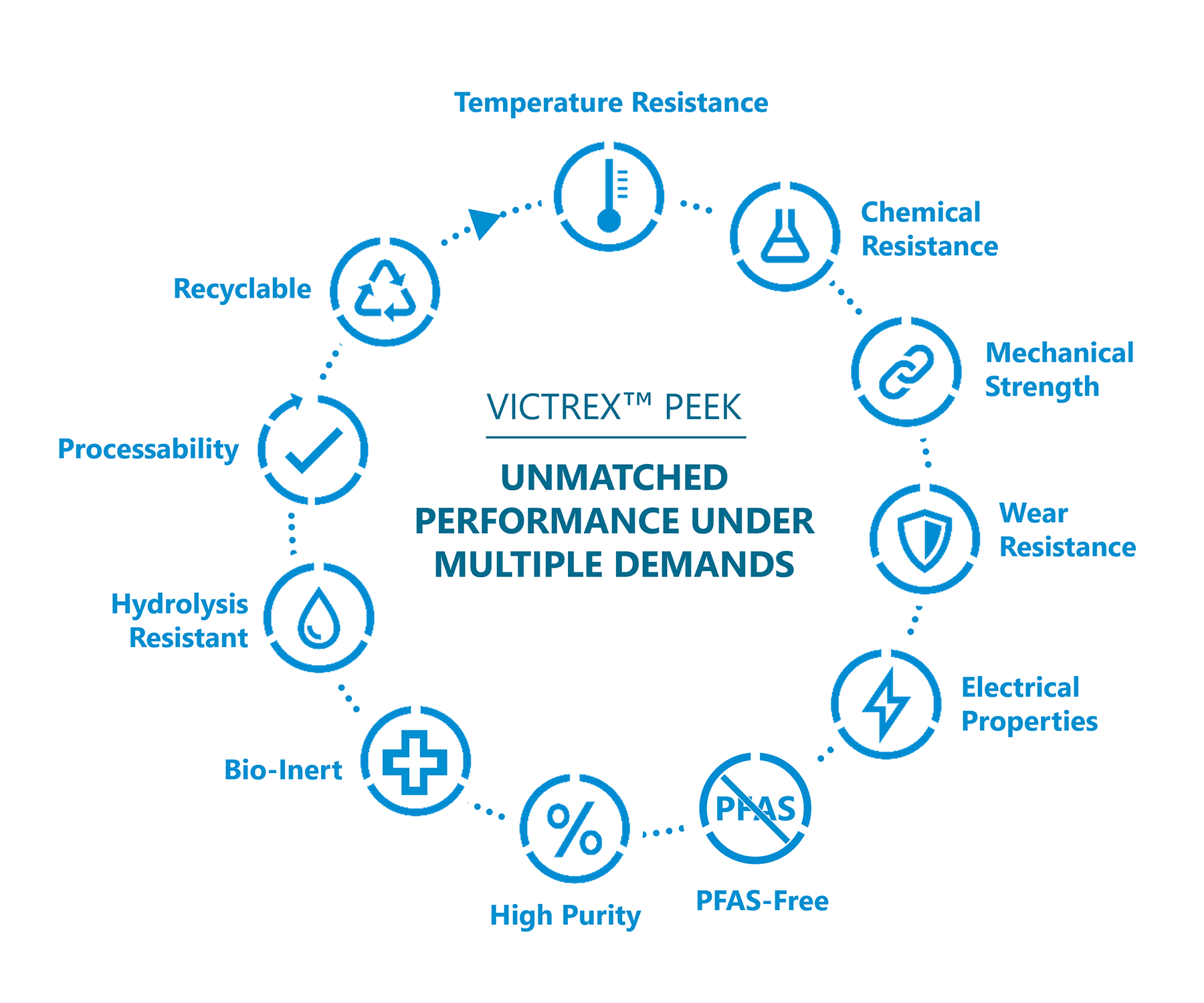

PEEK polymers are well suited for extreme and demanding environments, whether in the form of powder, pellets, or compounds or forms and parts. The light thermoplastic can support multiple requirements at the same time – to solve material limitations in applications, often replacing metals, and to meet cost-efficiency and sustainability needs.

Text
Thermometer

High temperature performance

Suitable for continuous-use temperatures up to 260°C (500°F). Glass transition temperatures up to 170°C (338°F)

 Learn about our solutions for demanding oil & gas conditions
Text

High wear resistance

Low coefficient of friction. High abrasion and cut-through resistance.

Enabling innovation in transmission and engine
Text

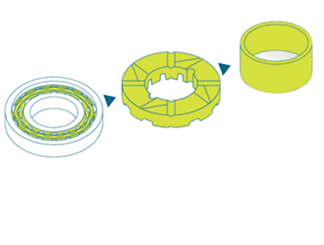

Mechanical strength and dimensional stability

High strength and stiffness in demanding conditions. Excellent long-term creep and fatigue properties

Discover the benefits for Aerospace structural applications
Chemical Resistance Icon showing a conical flask

Resistance to harsh chemicals

Withstands a wide range of acids and bases and shows excellent performance in hydrocarbons and organic solvents.

Read about our food contact-safe polymers
Lightning bolt in a circle

High electrical integrity

Consistent properties across a range of frequencies and temperatures. Insulating, conducting and static dissipative materials.

Supporting innovative consumer electronics design
Text

High purity & bio inert

Resistance to gamma and electron beam radiation as well as transparent to X-rays.

Find out how it's used in implantable devices

450G™ PEEK

450G, a popular choice, why? Because it delivers against a challenging combination of needs, whether mechanical, chemical, temperature or electrical, which means no need to compromise on performance.
Find out more
Processing

Process with ease when specifying VICTREX PEEK high-performance polymers

VICTREX PEEK polymer is capable of being processed on conventional thermoplastic equipment. Unfilled and filled grades may be supplied in the form of granules, powder or ultra-fine powder. Granules are generally recommended for injection moulding, extrusion, monofilament and wire coating operations. Powder is used for compression moulding whilst fine powders are generally used for coating processes and composite pre-preg manufacture.

Most standard reciprocating screw injection moulding machines are capable of moulding unfilled and filled VICTREX PEEK grades. Complex and intricate high performance components can be mass-produced without annealing or conventional machining. Victrex technical experts can assist with design and process variables such as machine design, barrel capacity, screw and mold design and gating.

Download the injection moulding guide

VICTREX PEEK thermoplastics can be used in extrusion processes and equipment including wire coating, profile extrusion, film, pipe, sheet and monofilament production. Unfilled and filled grades are readily extruded using conventional melt processing technology. Our highly experienced technical team can help define the machine design and address any processing challenges.

Download the extrusion guide

Compression moulded parts are generally more crystalline, have a higher modulus and tensile strength and are harder with a lower ductility. Glass and carbon fibres may be combined with VICTREX PEEK for compression moulding. Our technical team recommends that our customers anneal parts with very thick sections to relieve stresses.

Download the compression moulding guide
Resources
Victrex lab workers inspecting PEEK product
Blog article
Five factors to consider when moulding PEEK – avoid the need for troubleshooting
Read now
VICTREX PEEK polymer property guide
Technical guide
VICTREX PEEK polymer offers a unique combination and range of high-performance properties
Download the properties guide
Text
resources
Looking for a datasheet, tech guide or ISO certificate? Our resources section has all that and more
View now
Victrex Material Expertise & Parts Design
Video
Victrex brings materials' expertise coupled with application development and parts design
Watch the video
SHAPING FUTURE PERFORMANCETM

From the invention of PEEK over 40 years ago, Victrex has continually pioneered new PAEK-based polymers, materials and solutions that have transformed markets, delivering global impact in the toughest environments.

We bring transformational & sustainable solutions that address world material challenges every day.
